Ball joints and homokinetic joints

The Hagenbuch ball joints were originally developed for Hexamove applications. However, they can be used in all applications that require a flexible connection. Ball joints offer the advantage of being able to transfer strong forces despite their relatively small dimensions (compact design). They are also suitable for applications with high-frequency pulsations.

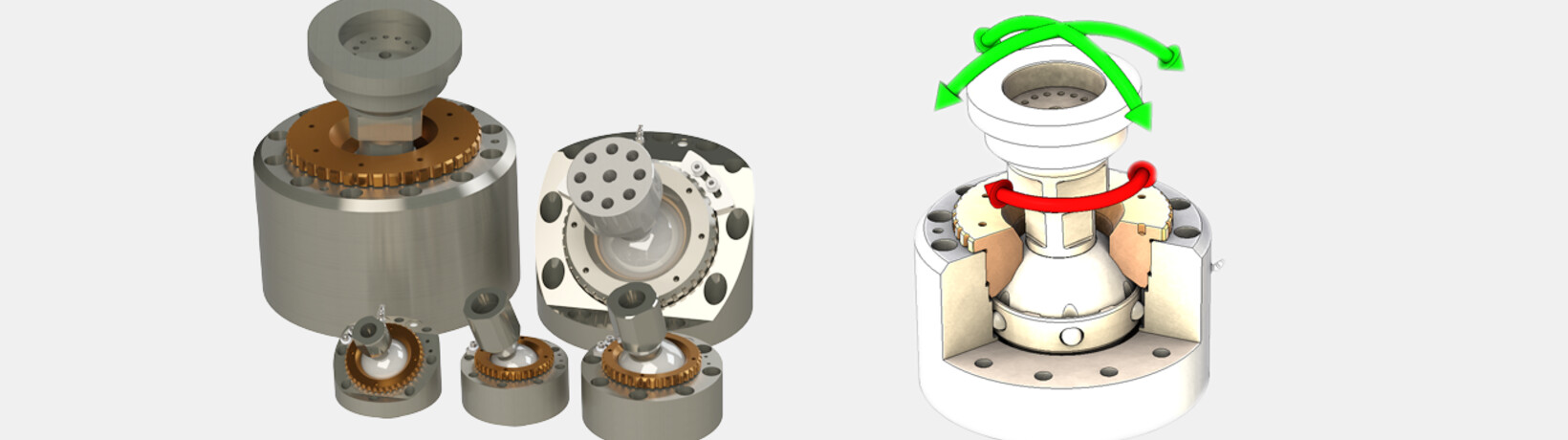

Hagenbuch ball joints come in three different types

Basic version The standard version allows movement in three degrees of freedom: pivoting on two sides and rotation around the longitudinal axis.
With anti-twist device The ball joints have a simple internal anti-twist device. As a result, the joint no longer rotates around the central axis. Only pivoting movements are possible. This version can be used, e.g. to prevent rotation of a cylinder, but it is not suitable for transmission of high torques.
Homokinetic joint High-end ball joint with integrated anti-twist device. As a result, the joint no longer rotates around the central axis. Only pivoting movements are possible. This version is suitable for transmission of relativeley high torques.
